AMG 65 Maverick

The Maverick is a modular design weapon. A different combination of the guidance package and warhead can be attached to the rocket motor section to produce a different weapon. The Maverick has three different seekers and two different warheads. The solid-rocket motor propulsion section is common to all variants. The seeker options are electro-optical (EO) imaging, imaging infrared (IR) or a laser guidance package. The warhead is in the missile's center section. Either a 125-pound shaped-charge warhead or a 300-pound penetrator warhead can be used. A contact fuse in the nose fires the shaped-charge warhead. The penetrator uses a delayed-fuse, allowing the warhead to penetrate the target with its kinetic energy before firing. The latter is very effective against large, hard targets. The AGM-65 has a cylindrical body with long-chord delta wings and tail control surfaces mounted close to the trailing edge of the wing of the aircraft using it.

A-10, F-15E and F-16 aircraft carry Mavericks. As many as six Mavericks can be carried by an aircraft, usually in three round, underwing clusters, allowing the pilot to engage several targets on one mission. The missile also has "launch-and-leave" capability that enables a pilot to fire it and immediately take evasive action or attack another target as the missile guides itself to the target. Mavericks can be launched from high altitudes to tree-top level and can hit targets ranging from a distance of a few thousand feet to 13 nautical miles at medium altitude.

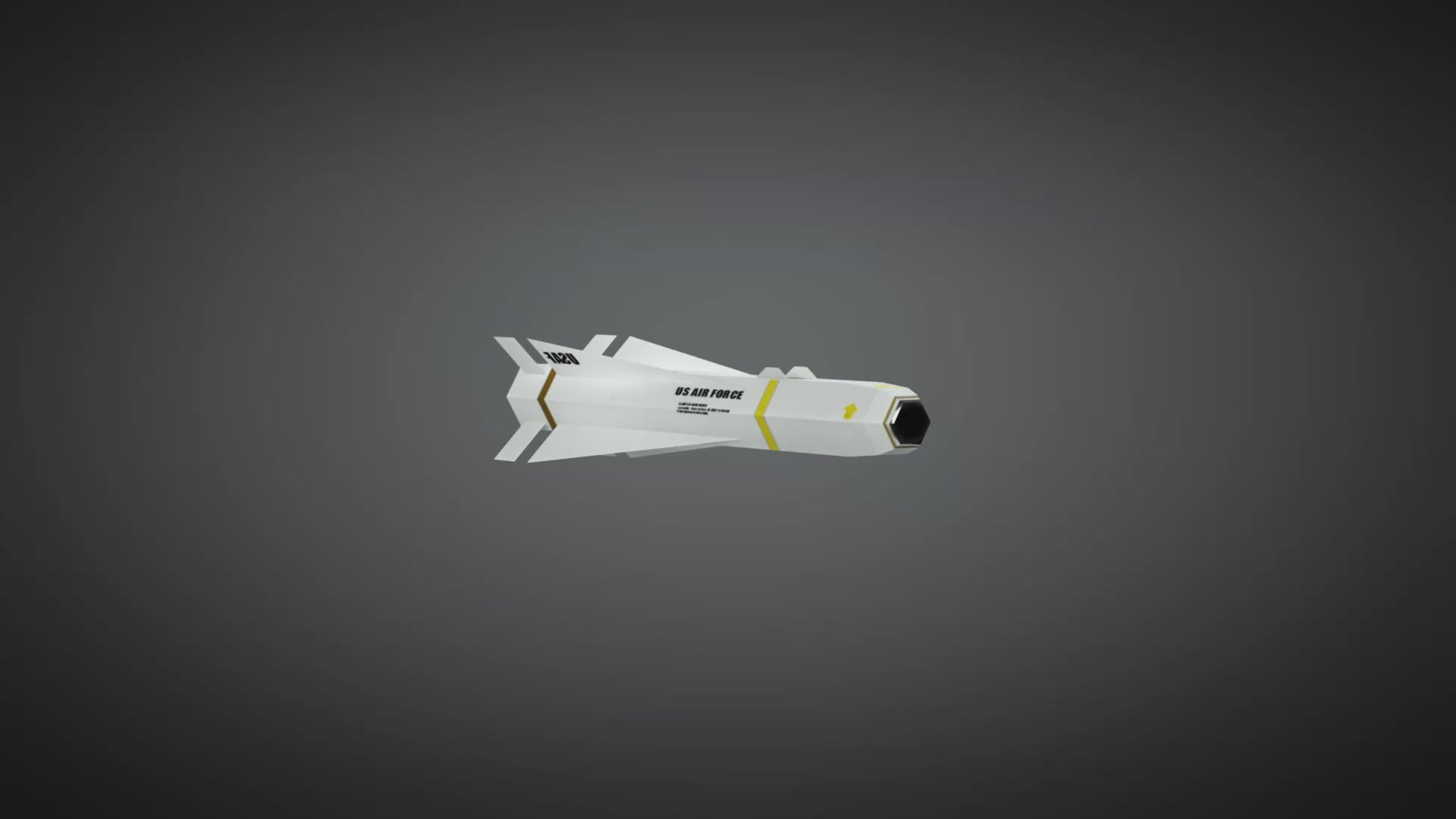

3D Modeled AMG 65 Maverick project ready for your project or sim.

Poly Count

Faces 41 Triangles 82

Textures included for FLT

AMG 65 Maverick - Standard .RGB Textures

Textures included for OBJ and FBX

AMG 65 Maverick - Standard PBR Textures
